Fun and Easy I2C - How I2C Protocol Works

Fun and Easy I2C - How I2C Protocol Works
►I2C COURSE- http://augmentedstartups.info/SPI-I2C-Courses

►MICROCONTROLLER COMMUNICATIONS 101 -http://augmentedstartups.info/microcontroller-communications-course
------------------------------------------------------------------------
This video gives you an introduction on how I2C or the two wire interface works on a fundamental bit bang signal level. Watch this lecture if you want to understand how I2C works before you implement it on an Arduino.

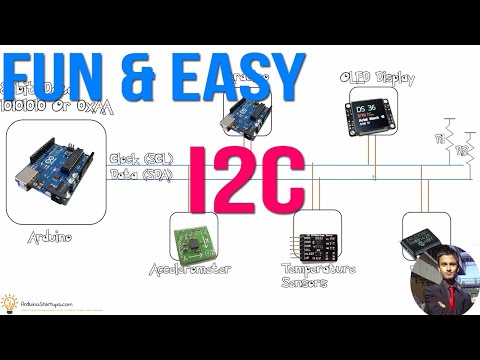

I2C combines the best features of SPI and UARTs. With I2C, you can connect multiple slaves to a single master (like SPI) and you can have multiple masters controlling single, or multiple slaves. This is really useful when you want to have more than one microcontroller logging data to a single memory card or displaying text to a single LCD.

Like UART communication, I2C only uses two wires to transmit data between devices:

Introduction to I2C - Single Master Single Slave

SDA (Serial Data) – The line for the master and slave to send and receive data.

SCL (Serial Clock) – The line that carries the clock signal.

I2C is a serial communication protocol, so data is transferred bit by bit along a single wire (the SDA line).

Like SPI, I2C is synchronous, so the output of bits is synchronized to the sampling of bits by a clock signal shared between the master and the slave. The clock signal is always controlled by the master.

HOW I2C WORKS
With I2C, data is transferred in messages. Messages are broken up into frames of data. Each message has an address frame that contains the binary address of the slave, and one or more data frames that contain the data being transmitted. The message also includes start and stop conditions, read/write bits, and ACK/NACK bits between each data frame...
------------------------------------------------------------
